Automatic soldering machine

You are here:Home >> Products >> Automation Equipment >> Automatic soldering ...

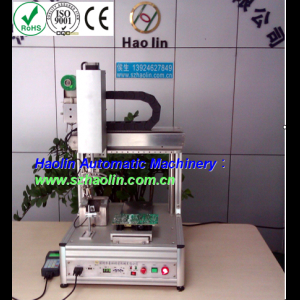

Name:Automatic Soldering Machine AS-4-3309-S/T
Model:AS-4-3309-S/T

Description Parameter

The iron head with cassette design can be changed quickly and use conveniently. Adjust in any angle and position.
The knife gear press a small hole from the side of soldering and let welding flux exudes while the tin is be offered by rule and line.
The programming operation of teaching pendant is easy and convenient. Directly input solder coordinates and implement soldering online/offline programming.
Used for soldering various electronic components such as capacitor, resistor, row-pin on perforation plug-in board etc..


Specifications:

Moving Range

X Axis

300 mm

Y Axis

300 mm

Z Axis

90 mm

R Axis

360°

Moving Speed

X Axis

400 mm/sec

Y Axis

400 mm/sec

Z Axis

200 mm/sec

R Axis

600°/sec

Repeat Accuracy

±0.02 mm

Temperature Range

0-500

SolderWire Range

0.3-1.6 mm

Programming Method

Teaching Pendant

Driving Method

stepper or servo motor

Power Supply

220V 300W
