Automatic screw machine

You are here：Home >> Products >> Automation Equipment >> Automatic screw mach...

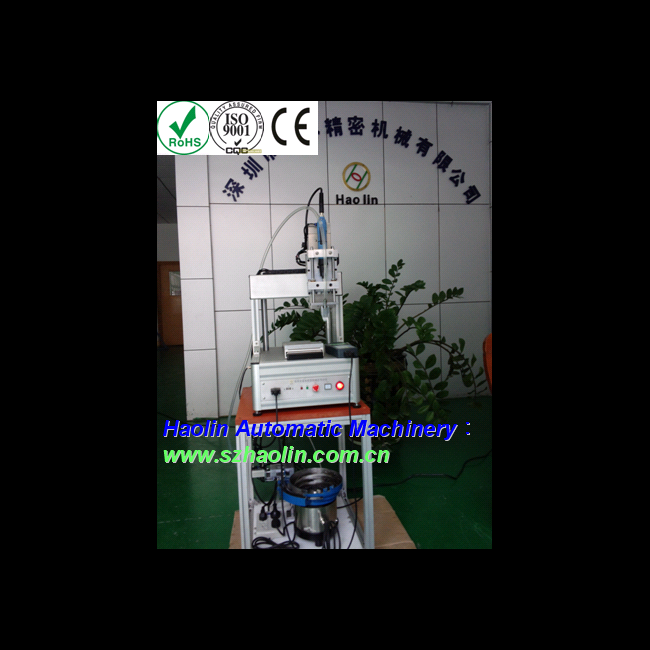

Name：Automatic Screw Driving Machine ASD-2205-S/T
Model：ASD-2205-S/T

Description Parameter
Automatic Screw Machine Uses

Widely used in small appliances, electronics, instrumentation, LED, communications industry mobile phones, tablet computers, notebook computers, health, mouse, lighting, printers, circuit boards and other small products lock screw.

Automatic Screw Machine Features

1 device desktop can be easily put into the production line, the standard single-head dual Y-axis work platforms;

2 double Y-axis automatic alternate operating platform, the machine can not stop working, safe and convenient, fast and high efficiency.;

3 screws automatic entire column, automatic feeding, safe noise, efficiency up to 60 per minute;

4 screw feeding methods: feeder track can freely adjust the feed screw according to the size of the feed is divided into: a.
True b blowing air suction type;

. 5 XYZ axes are imported stepper motor + Ball + precision linear slide rotation, to ensure the accuracy and stability of the automatic locking screw machine;

6 device control using PLC + HMI, high efficiency lock screw, all Chinese programming interface, easy to understand.


 Specifications：

Moving Range

X轴

200 mm

Y轴

200 mm

Z轴

50 mm

Moving Speed

X轴

400 mm/sec

Y轴

400 mm/sec

Z轴

200 mm/sec

Positioning Accuracy

±0.02 mm

Air Pressure

4-5 kg/cm2

Drive Motor

Servo or Stepper

Power

300W
